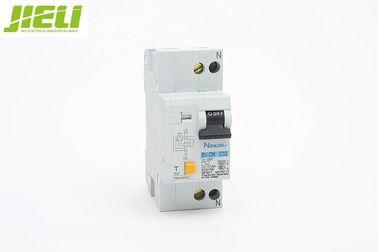

3KA 7.5KA Low Voltage Switchgear Residual Current Circuit Breaker , RCCB 2 Pole

3KA 7.5KA Low Voltage Switchgear Residual Current Circuit Breaker , RCCB 2 Pole
3KA 7.5KA Low Voltage Switchgear Residual Current Circuit Breaker , RCCB 2 Pole

تصویر بزرگ :  3KA 7.5KA Low Voltage Switchgear Residual Current Circuit Breaker , RCCB 2 Pole

جزئیات محصول:
Place of Origin: Zhejiang,China(Mainland)
نام تجاری: JIELI
گواهی: CE/ISO9001/IEC60898-1
Model Number: JL-BV-DN
پرداخت:
Minimum Order Quantity: 1200 Piece/Pieces other
قیمت: Negotiable
Packaging Details: Standard export carton or according to your request.
Delivery Time: Within 20 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
Supply Ability: 50000POLES/DAY
توضیحات محصول جزئیات
برجسته:

earth leakage circuit breaker,elcb circuit breaker

,

elcb circuit breaker



3KA 7.5KA Low Voltage Switchgear Residual Current Circuit Breaker , RCCB 2 Pole





Quick Detail:



Place of Origin:

Zhejiang China (Mainland)

Brand Name:

JIELI

Model Number:

JL-BV-DN Residual current circuit breaker

Type:

Residual Current Circuit breaker

Poles Number:

2,4P

Crust color:

White

Standard:

IEC61008-1

Certificate:

CE,CB,CCC,TUV

Quality:

A

Price:

Get latest price

Rated current:

6A-63A

Rated voltage:

230/400V

Poles:

2P,4P

Breaking capability:

3KA/7.5KA

Cover:

Fire proof





Description:



1,JL-BV-DN Residual current circuit breaker ID is used for protection against indirect touching of parts under voltage, for prevention of lasting voltage on earthed parts which should appear because of a defect in the electrical installation and for protection against direct contacts of parts under voltage in case of In<30mA.

2,JL-BV-DN residual current circuit breaker/rccb/rcd/elcb can be used in TN-S, TT and IT network systems or with other words in all systems where neutral and protective conductor are separated(VDE 0100 Teil 410).





Specifications:



Product name

JL-BV-DN

Standard

IEC61008/GB16196

Product Certifications

CE,CB,3C

Product Function

Leakage protection, Isolation function

Rated current(A)

<25   <40  <63

Pole No

1P+N  3P+N

Rated voltage(V)

230V/400V

Rated frequency(Hz)

50/60

Sensitivity (In)

30mA,100mA,300mA

Environment  temperature

-25°C-+60°C

Connection type

Tunnel style, Pin style, U style

Biggest wiring ability

35mm2

Action  style

AC22

Installation style

35mm standard 35mm guide

Im,Im(A)

500

Inc,Ic(A)

6000

Mechanical life

10000

Protection degree

IP20





Our service:



1. Samples: provide free samples.

2. Package: all products will be well packed before shipping.

3. Warranty: all products have 2-5 years warranty.

4. Delivery: within 30days after received the deposit.

5. Provide OEM and ODM service.

6. We can help you with any of your idea to design and put it into production.

7. Provide help for building factories, such as: spare parts, technical questions,

financial matter, management problem , approach of sales...





Why choose us:



1. Factory :Since 2002

2. Team: More than 300 workers (10% of our personnel are superior technicians)

3. Approval:ISO9001:2000, CE, CB, CCC and PICC, and especially we got UL certificate

for air-conditioning AC contactors in 2005



We always consider quality and service first. Our policy is "Quality First; Improve Technology; Expecting Future". Our tenet is "Product & Brand Competition; Quality Serve the world".

We hereby would like to work together with more new and old clients to realize our mutual goals of "more excellent products, more competitive prices, and more personalized service".





Store:



when the products residual current circuit breaker need store for a long time, not control the products

store environment, the metal and the paint coat will be corroded. So, pay attention to:

1) Products residual current circuit breaker must store with room temperature and dry environment.

Sealing when under high humidity environment.

2) Don't store the products with acid volatile liquid and acid gas together. Don't store in high dust environment.

3) Don't store the products residual current circuit breaker in high temperature and humidity or lowest temperature for a long time, please install and use as soon as possible.

4) Don't contact the link wire before products used normally, preventing corrosion from pre-contacting.

5) Please inform and operate under the manufacturer' advise referring to special store environment

such as high temperature and humidity islands near equator, ultra-low temperature area.
