Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A

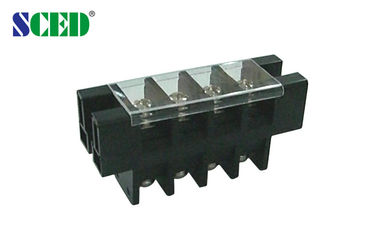

تصویر بزرگ : Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A

جزئیات محصول:

Place of Origin:	Shenzhen, China
نام تجاری:	SCED
گواهی:	UL, CE
Model Number:	TD180-01-C

پرداخت:

Minimum Order Quantity:	500
قیمت:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T
Supply Ability:	1KK poles each monthly

مخاطب

توضیحات محصول جزئیات

Type:	Terminal Block Connector,Terminal Block Connectors, PCB Connectors	Pitch:	21.0mm
Number Of Contacts:	Any Poles Available	Wire Range:	20-1/0
Rated Voltage:	600V	Rated Current:	180A
Color:	Black	Applications:	PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
برجسته:	barrier terminal block connector,pcb terminal block connector , pcb terminal block connector

Detailed product Description:

Single Deck Through Panel Terminal Block Connector Pitch 21.0mm, 600V 180A
Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors

■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

How to order:

Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 180	300 / 180	300 / 10
Wire Range AWG	20-1/0	20-1/0	4-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 180	800 / 180	1000 / 180
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	8
Material
Insulation Material / Inflammability Class	PBT/ UL94, V-0
Conduction Board / Plating	Copper / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	14-18
Screw / Torque / lbf.in	M6 / 20-22
