Matt Surface Tactile Dome Switch Custom Electronics Push Button

چین Matt Surface Tactile Dome Switch Custom Electronics Push Button تامین کننده

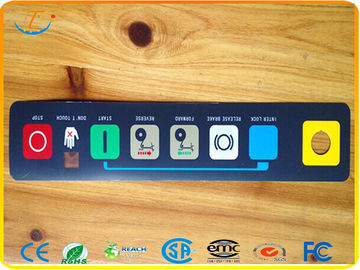

تصویر بزرگ :  Matt Surface Tactile Dome Switch Custom Electronics Push Button

جزئیات محصول:

Place of Origin: guangdong,china
نام تجاری: Tiantai:membrane switch
گواهی: SGS
Model Number: TT02

پرداخت:

Minimum Order Quantity: 1000pcs
قیمت: EXW price/FOB shenzhen port price
Packaging Details: standard export market
Delivery Time: within 15 workdays after confirm sample
Payment Terms: T/T,western union,paypal
Supply Ability: 100000pcs/year
Contact Now
توضیحات محصول جزئیات

Matt Surface Tactile Dome Switch Custom Electronics Push Button







  1. overlay material : PET /PC
  2. adhesive: 3M467 & 3M468 or as per request
  3. High life time :>1million times
  4. Pass:ISO9001:2008 RoHS.SGS
  5. Membrane Switch Overlay
  6. Custom made OEM/ODM
  7. Rasing available
  8. Membrane switch faceplate
  9. Withstand millions of cycles
  10. perfect exterior
  11. metal dome or silicone keypad is also available.
  12. Connector with housing



Parameter



Maximum Circuit Rating 35V( DC)100mA 1W
Contact Resistance 10Ω~500Ω(Depending on trace length & material used).
Insulation Resistance 100MΩ at 100V DC
Dielectric Withstand 250 V Rms (50~60 Hz 1 min.)
Contact Bounce 5ms
Life Expectancy Flat type ≧ 5 million closures
Mylar type ≧ 2 million closures
Metal type ≧ 1 million closures
Actuation Force Flat type = 60 to 300 g (2 to 10 oz)
Tactile type = 180 to 400 g (6 to 14 oz)
Switch Stroke Flat type = 0.1 to 0.5mm
Tactile type = 0.6 to 1.5mm
Operation Temperature Flat/Metal dome: -40 °C to +80 °C
Poly dome: -20 °C to +55 °C
Storage Temperature Flat/Metal dome: -40 °C to +85 °C
Poly dome: -40 °C to +60 °C
Humidity 40 °C , 90% ~ 95% for 240 hours
Vibration 20 G's0 max
(10-200 Hz,MIL-STD-202,M204,Condition B)







Applications:



Products are widely used in communication, industrial control, household appliances, GPS, children's kid-learning, electronic reading machine, various game machines, Instruments and Apparatuses, attendance machine,Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators and etc.







Specialize in manufactuing membrane switch



Overlay+circuit+LED+metal dome or poly dome array+connector+double side tape

EL backlight +Rubber keys

Aluminum plate+Rubber keys

Metal domes

Flat without Tactile Effect

Embossing with Tactile Effect

Embossing with Metal Dome

Membrane Switch with FPC
