Protection Level:: | IP68 | Material: | Nylon |
---|---|---|---|
Thread Length L1(mm):: | 10 | Cable Range:: | 6-12mm |
Working Temperature:: | -40°C + 100°C | Sample:: | Free samples for any test |

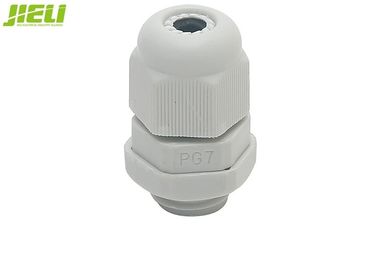

IP68 Plastic Waterproof Joints Nylon Nickel Brass Metal PG Metric Cable Gland
Quick Detail:
Description:
PG joint:the design of clamping claw and special seal, forced to cooperate with tight head
assembly time-savers, cable clamping range is big, Tensile resistance is strong, can waterproof,
prevent dust, prevent oil, acid and alkali, salt and other general grease.plastic cable kits,
cable waterproof connector is mainly used in the distribution box, power distribution cabinet above.
Connector cable lock, can be at the other end can access the above equipment enclosure,
can also according to the thread Access to the electric equipment import and export for the
internal thread. General mechanical control box, switchboard, machine Such as wire and
cable fixed to use, can effectively clamping cable waterproof and to achieve.
Applications:
PG joint is used in power electronic control equipment, military, petroleum, chemical, explosion,
textile,medical,aeronautical communications, machine tool machinery and equipment manufacturing,
measurement and control technology, instrumentation manufacturing and many other industries
equipped with plastic coated hoses, cables, wires connector;above. Connector cable lock,
can be at the other end can access the above equipment enclosure, can also according to
the thread Access to the electric equipment import and export for the internal thread.
General mechanical control box, switchboard, machine Such as wire and cable fixed to use,
can effectively clamping cable waterproof and to achieve.
Specifications:
PG |
|||||
Model |
Cable Range |
H |
GL |
Spanner Size |
No. |
mm |
mm |
mm |
mm |
|
|
PG7 |
3-6.5 |
19 |
5 |
14 |
P 0707BR |
PG7 |
2-5 |
19 |
5 |
14 |
P 0705BR |
PG9 |
4-8 |
21 |
6 |
17 |
P 0908BR |
PG9 |
2-6 |
21 |
6 |
17 |
P 0906BR |
PG11 |
5-10 |
22 |
6 |
20 |
P 1110BR |
PG11 |
3-7 |
22 |
6 |
20 |
P 1107BR |
PG13.5 |
6-12 |
24 |
6,5 |
22 |
P 13512BR |
PG13.5 |
5-9 |
24 |
6,5 |
22 |
P 13509BR |
PG16 |
10-14 |
23 |
6,5 |
24 |
P 1614BR |
PG16 |
7-12 |
23 |
6,5 |
24 |
P 1612BR |
PG21 |
13-18 |
24 |
7 |
30 |
P 2118BR |
PG21 |
9-16 |
24 |
7 |
30 |
P 2116BR |
PG29 |
18-25 |
29 |
8 |
40 |
P 2925BR |
PG29 |
13-20 |
29 |
8 |
40 |
P 2920BR |
PG36 |
22-32 |
35 |
8 |
50 |
P 3632BR |
PG36 |
20-26 |
35 |
8 |
50 |
P 3626BR |
PG42 |
32-38 |
37 |
9 |
57 |
P 4238BR |
PG42 |
25-31 |
37 |
9 |
57 |
P 4231BR |
PG48 |
37-44 |
38 |
10 |
64 |
P 4844BR |
PG48 |
29-35 |
38 |
10 |
64 |
P 4835BR |
